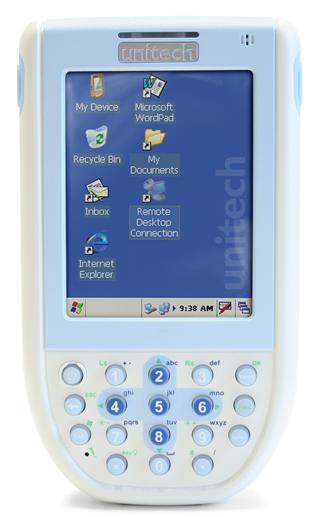

The PAT PA600 MCA (Mobile Clinical Assistant) is a compact and rugged mobile computer designed especially for health care applications. Constructed with an antimicrobial protective housing, and equipped with an RFID reader and 2D bar code scanner, the PAT PA600 MCA is the ideal mobile computer for modern medical professionals.

Applying RFID technology with 2D bar code systems are becoming more commonplace in today's medical environment. These technologies allow medical staff to correctly identify patients by reading their RFID enabled wristbands and ensure that the correct treatment is administered to the correct patient when scanning medicines.

SyntegraTech recognizes this trend and committed much effort into developing a product that specifically meets the needs of today and tomorrow. The PAT PA600 MCA's full QVGA color touch-screen enables the operator to view more information about the RFID tags that have been read, and the ergonomic design and alphanumeric keypad make data entry simple.

Supporting Oracle Database Lite and Microsoft BizTalk Server 2006, the PAT PA600 MCA allows end users to synchronize RFID data with existing business systems and databases - thereby reducing deployment time, integration challenges and total cost of ownership.

INTERNAL PERFORMANCE Operating System Microsoft Windows CE 5.0 CPU 624Mhz Intel PXA270 Processor Memory SDRAM: 128 MB Flash ROM: 576 MB

EXTERNAL CHARACTERISTICS Dimensions 5.89"H x 3.35”W x 1.4”D Weight 11.1 ounces Display 3.5” color QVGA (240 x 320 pixels) Backlit touch-screen, transflective TFT-LCD Keypad 18-key alphanumeric keypad (includes function key) Indicator LED (Green/Red) Audible Beeper Audio MIC, Speaker, Headset Connector, Receiver

COMMUNICATION Batch USB Host / Client Wireless Bluetooth (Printer/ Modem / ActiveSynce) 802.11 b/g RFID 13.56MHz Frequency ISO15693, ISO14443A, ISO14443B Security WEP, WPA, WPA2-TKIP, AES Passkey (Bluetooth)

BATTERY and POWER Main Battery 3.7V Li-Ion 2200mAh rechargeable battery pack Battery Life 4.5-hours to 14-hours Charging Time 5-hours (via charging cable or docking station) Docking Station USB cradle with spare battery charging function Power Input 5V AC adapter

CONNECTION & EXPANSION COM Port For charging and communication Head Set Jack SDIO Slot

FIELD ENVIRONMENT Drop Threshold 4' Environmental Sealing IP64: Sealed against dust, dirt, and moisture Antimicrobial casting Humidity 5% to 95% (non-condensing) Operational Temperature 14ºF to 122ºF (0ºC to 50ºC) Storage Temperature -4ºF to 140ºF (-20ºC to 60ºC)

INPUT DEVICES Bar Code Scanner Scan Rate 104 scans/sec. ± 12 scans/sec. (bi-directional) Scan Angle 47º±3º default / 35º±3º reduced Decode Zone Typical 4.0 mils: 1.0 in. - 5.5 in. (2.45 cm - 13.97 cm) 5.5 mils: 1.25 in. - 8 in. (3.18 cm - 20.32 cm) 7.5 mils: 1.5 in. - 13.25 in. (3.81 cm - 33.66 cm) 10 mils: 1.5 in. - 17.5 in. (3.81cm - 44.45 cm) UPC 100%: 1.5 in. - 23.5 in. (3.81cm - 59.69 cm) 15 mils: 1.5 in. - 29.5 in. (3.81 cm - 74.93 cm) 20 mils: 1.75 in. - 35.5 in. (4.45 cm - 90.17cm) 40 mils: * - 40 in. (*- 101.6 cm) 40.0 mils: * - 55 in. (*- 139.7 cm) * Dependent on width of bar code Symbologies (1D) UPC-A/E EAN-8/13 Codabar Code 39 Code 39 full ASCI Code 93 Code 32 Interleaved & Std. 2 of 5 EAN 128 Code 11 Delta MSI/Plessey Code 128 Toshiba Symbologies (2D) Composite Data Matrix MaxiCode PDF-417 Postal Code QR Code

IN THE BOX PA600 USB Cable AC Adapter Stylus Elastic Stylus String Battery User’s Manual Accessible Software
