PAT PA600 BASIC INDUSTRIAL PPC

PAT PA600
BASIC INDUSTRIAL PPC

SyntegraTech^® provides you with any and all the hardware and software you might need to get started building your own system, or to add to a system you built yourself, someone else built for you, or came to you from SyntegraTech^®. You may purchase either this device as part of a DIY Package, that includes the device and the development tools required to make it instantly useful, or you purchase the device by itself. Please click to provide instructions to order.

You can DO- IT-YOURSELF using Software.

PATPA600 $1820.00 EACH

SyntegraTech^® PAT PA600

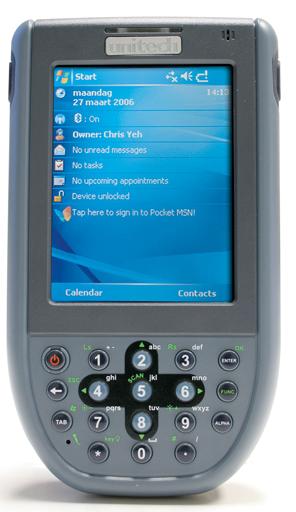

Powered by Microsoft Windows CE 5.0 or Windows Mobile 5.0, the PAT PA600 is designed for users who need a compact, yet durable PDA for data collection and real time transactions. Perfect for Retail, Hospitality, Healthcare, Sales Automation, and Field Services, it will enable you to select the features best suited to fit your business. Equipped with a large color LCD touch screen, integrated laser scanner, 18-key keypad, and 520MHz processor, the PAT PA600 was designed to meet the demands of today’s applications.

Compact enough to fit in your shirt pocket, it is the lightest PDA in its class, weighing in at just 290g. The PAT PA600 may be small in proportion, but is extremely powerful and durable. With an IP64 rating to resist dust and water, the PAT PA600 can also withstand 4-foot drops to a concrete floor.

When it comes to capturing data, the PAT PA600 offers a variety of model options- integrated barcode scanner, keypad, touch screen, and optional Bluetooth, WLAN, and WWAN available, all depending on your own personal requirements. Processor: Intel PXA310 624MHz

INTERNAL PERFORMANCE

Operating System Microsoft Windows Mobile 6.1

CPU 624Mhz Intel PXA270 Processor

Memory SDRAM: 128 MB
Flash ROM: 576 MB

EXTERNAL CHARACTERISTICS

Dimensions 5.89"H x 3.5”W x 1.05”D (configuration-dependent)

Weight 10.2 ounces (configuration-dependent)

Display 3.5” color QVGA (240 x 320 pixels)
Backlit touch-screen, transflective TFT-LCD

Keypad 18-key alphanumeric keypad (includes function key)

Indicator LED (Green/Red)
Audible Beeper

Audio MIC, Speaker, Headset Connector

COMMUNICATION

Batch USB Host / Client

Wireless Bluetooth (Printer/ Modem / ActiveSynce)
802.11 b/g
WWAN (GSM / GPRS / EDGE / 2.5G)
IrDA SIR 1.2

Security WEP, WPA, WPA2-TKIP, AES
Passkey (Bluetooth)

BATTERY and POWER

Main Battery 3.7V Li-Ion 2200mAh rechargeable battery pack

Battery Life 4.5-hours to 14-hours (configuration-dependant)

Extended Battery Ni-MH rechargeable battery

Charging Time 4-hours (via charging cable or docking station)

Docking Station USB cradle with spare battery charging function

Power Input 5V AC adapter

CONNECTION & EXPANSION

COM Port For charging and communication

Head Set Jack

SDIO Slot

FIELD ENVIRONMENT

Drop Threshold 4'

Environmental Sealing IP64: Completely sealed against dust and dirt, and also moisture resistant

Humidity 5% to 95% (non-condensing)

Operational Temperature 32ºF to 122ºF (0ºC to 50ºC)

Storage Temperature -4ºF to 140ºF (-20ºC to 60ºC)

INPUT DEVICES

Laser Bar Code Scanner

Scan Rate 104 scans/sec. ± 12 scans/sec. (bi-directional)

Scan Angle 47º±3º default / 35º±3º reduced

Decode Zone Typical 4.0 mils: 1.0 in. - 5.5 in. (2.45 cm - 13.97 cm)
5.5 mils: 1.25 in. - 8 in. (3.18 cm - 20.32 cm)
7.5 mils: 1.5 in. - 13.25 in. (3.81 cm - 33.66 cm)
10 mils: 1.5 in. - 17.5 in. (3.81cm - 44.45 cm)
UPC 100%: 1.5 in. - 23.5 in. (3.81cm - 59.69 cm)
15 mils: 1.5 in. - 29.5 in. (3.81 cm - 74.93 cm)
20 mils: 1.75 in. - 35.5 in. (4.45 cm - 90.17cm)
40 mils: * - 40 in. (*- 101.6 cm)
40.0 mils: * - 55 in. (*- 139.7 cm)
* Dependent on width of bar code

Symbologies UPC-A/E
EAN-8/13
Codabar
Code 39
Code 39 full ASCI
Code 93
Code 32
Interleaved & Std. 2 of 5
EAN 128
Code 11
Delta
MSI/Plessey
Code 128
Toshiba

IN THE BOX

PA600

USB Cable

AC Adapter

Stylus (2)

Battery

User’s Manual

Accessible Software

PATPA600 $1820.00 EACH
