PAT NOVA6000ex VERY RUGGED TABLET PPC

PAT NOVA6000ex
VERY RUGGED TABLET PPC

SyntegraTech^® provides you with any and all the hardware and software you might need to get started building your own system, or to add to a system you built yourself, someone else built for you, or came to you from SyntegraTech^®. You may purchase either this device as part of a DIY Package, that includes the device and the development tools required to make it instantly useful, or you purchase the device by itself. Please click to provide instructions to order.

PATN6000EX $1150.00 EACH

                      SyntegraTech^® PAT NOVA6000ex

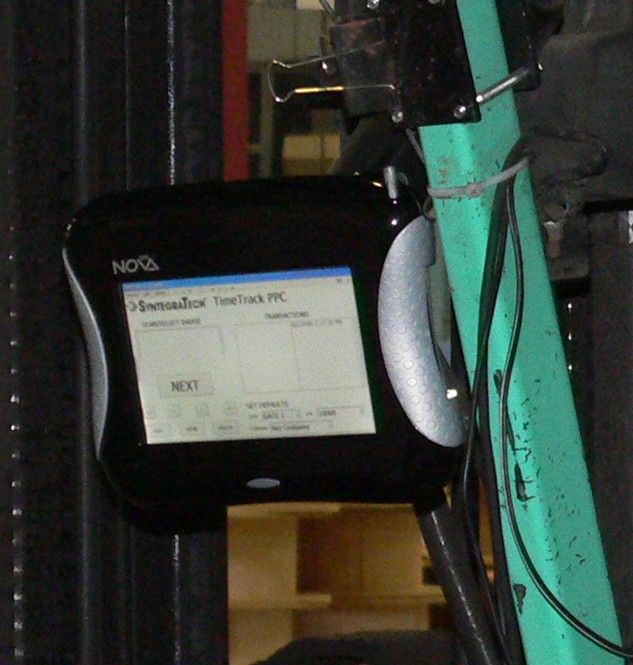

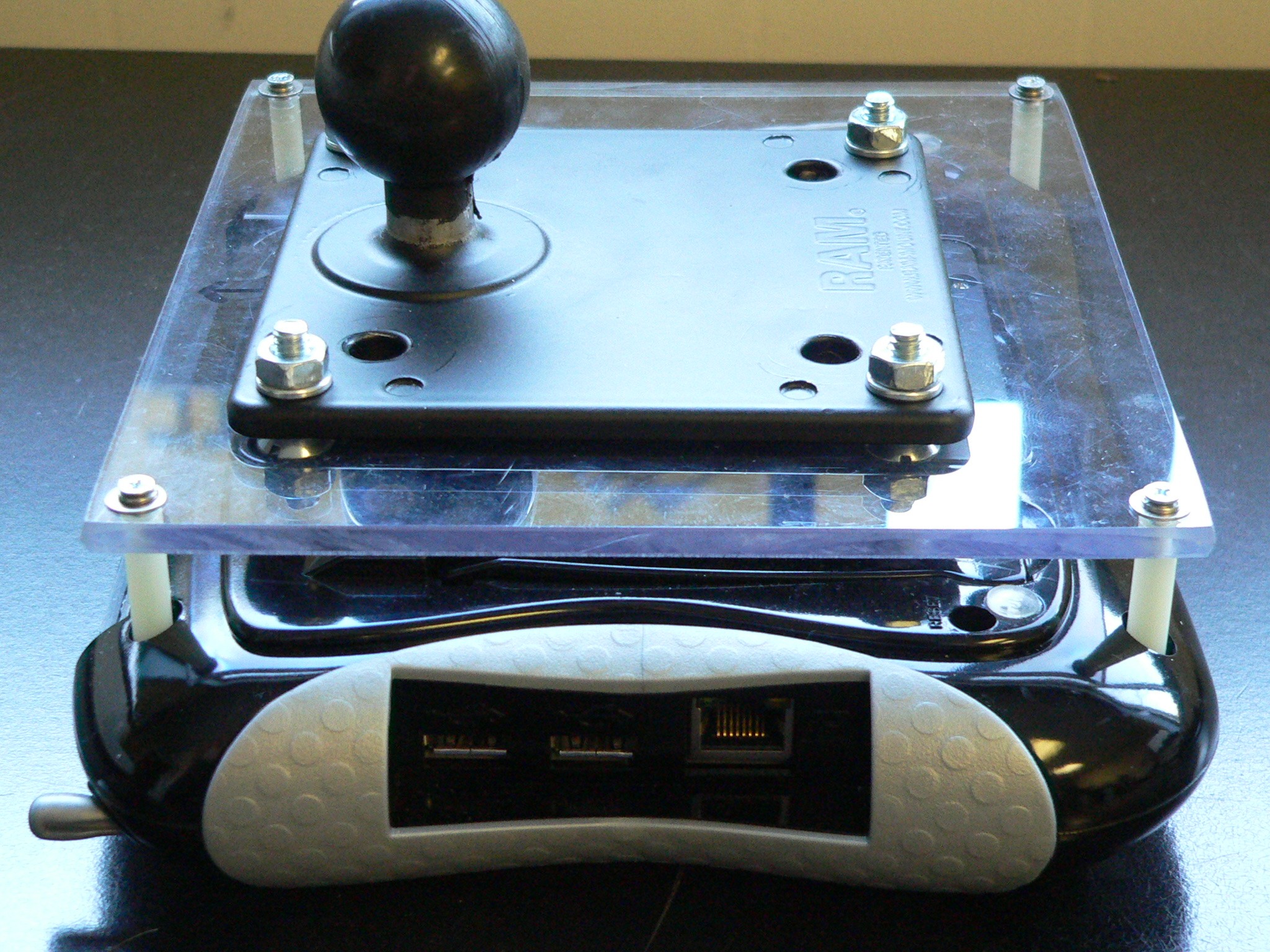

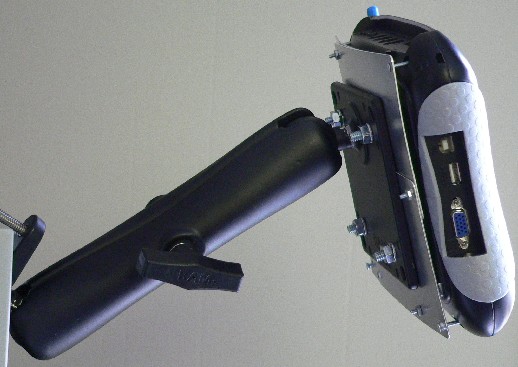

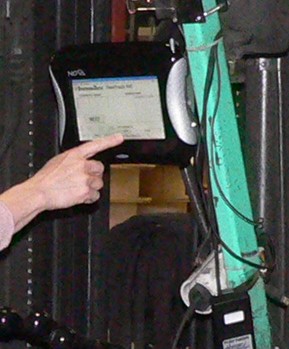

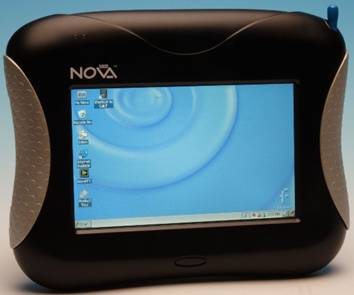

The PAT NOVA6000ex is an exceptionally rugged Tablet Pocket PC computing device with a 7" 800x480 brilliant color touch screen. It has excellent battery life due to the low power Intel XScale processor for instant on and 8 hours of continuous operation. The PAT NOVA6000ex offers full connectivity with both an integrated RJ45 ethernet port and WiFi 802.11 b/g. You may use the 8 built-in Fourier MultiLogPRO data logger ports to capture and display data from many different types of sensors. The PAT NOVA6000ex is based on a flexible design with Ethernet, USB, CF and SD card ports, and is light and portable measuring only 9.33" x 7.32" x 1.7" and weighing a very light 2.7 lbs. This easy to see and easy to use device, boasting a bright and very large screen (7 inches), runs on Windows CE.NET 5.0 with a very, very low total cost of ownership. You may connect to bar code scanners, RFID scanners, proximity scanners, and printers through the USB and SDIO ports, and the CF slot. The PAT NOVA6000ex is at home in your hands, on your desk, on the wall, or mounted on you vehicle and offers power and mounting options for all your requirements and possibilities.

PROCESSOR - Intel PXA270 @ 624 MHz
MEMORY - 128MB SDRAM, 256MB FLASH
DISPLAY - 65K colors TFT LCD, 7", 2D Graphics accelerator, 800 (w) x 480 (L) resolution.
TOUCH PANEL - Glass analog resistive touch
BACKLIGHT - White LED backlight
KEYBOARD/CONTROLS - On-screen touch keyboard, customizable
               Device Reset
               Power on/off button
INPUT DEVICES- Stylus (Note: touch sensitive display for stylus or fingertip).
CONNECTORS/PORTS - Barrel connector power jack, 12 VDC 4.5 AMPS
               USB docking connector for ActiveSync
               3 USB 1.1
               RJ45 Ethernet
               2.5mm Headset Jack with support for both Voice & Stereo music
               Compact Flash Slot
               SD Card Port
               VGA Port
AUDIO - Built in Speaker
WIRELESS LOCAL AREA NETWORK - IEEE 802.11 b/g
                Antenna     : Internal
OPERATING SYSTEM - Microsoft Windows CE.NET 5.0
PRE-LOADED SOFTWARE - Internet Explorer 6
               Windows Media Player 9
               Inbox supporting POP3 and IMAP4
               Portrait-4 Scientific Graphic Calculator
               ActiveSync Client
               MSN Messenger Client
               TextMaker 2008 (Word Mobile look alike)
               PlanMaker 2008 (Excel Mobile look alike)
               Presentations 2008 (PowerPoint Mobile look alike)
               MultiLab Collection and Analysis
               Wordpad
               CalcC Scientific and Statical Calculator
               MS Transcriber and Character Recognition
               Sound Recorder
               PrintBoy printing application
               Printer Drivers with PLC support
               Unit Converter
POWER SOURCE - Main Battery: 3.0v 4400 mAh Lithium rechargeable
                Realtime Clock.
OPERATIONS: 50 to 120 Degrees Fahrenheit
                10% to 90% Relative Humidity
DIMENSIONS   - 9.33"w x 7.34"h x 1.7"d
WT.- 2.7 lb. (w/battery)

Product Type: TABLET POCKET PC

PATN6000EX     $1150.00 EACH
