SyntegraTech®
provides you with any
and all the hardware and software you might need to get started building
your own system, or to add to a system you built yourself, someone else
built for you, or came to you from
SyntegraTech®. You may purchase either this device
as part of a DIY Package, that includes the device and the development
tools required to make it instantly useful, or you purchase the device
by itself.
Please click to provide
instructions to order.
You can DO- IT-YOURSELF using
Software.
PATMT380 $1450.00 EACH
|
SyntegraTech®
PAT MT380
SyntegraTech's Grant access to anyone, anywhere and at
anytime. Introducing

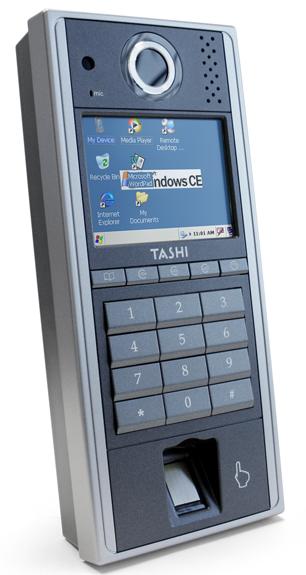

SyntegraTech's PAT MT380, one of the most compact IP-based
Time & Attendance / Access Control terminals on the market. Operating on
the versatile Windows CE 5.0 platform, the MT380 can be customized for
deployment in numerous vertical applications.
For access control and security assurance, the MT380 utilizes a host of
unique features, such as
integrated proximity and fingerprint readers, 2-megapixel camera and
microphone. Also, data input is seamless with a large numeric keypad,
function keys and 3.5-inch QVGA color touch-screen. The MT380 offers
Ethernet and WiFi network connectivity, and supports POE to eliminate
the need for additional AC power adapters.
The MT380 works perfectly with
SyntegraTech's PATS or TimeTrack comprehensive and ready-to-use
Attendance and Time & Attendance application software as well as
SyntegraTech's eTimeSheet labor reporting application software. The
MT380 SDK is also available to use to integrate this PAT into any
existing application.
|
INTERNAL PERFORMANCE
|
 |
|
Operating System |
Windows CE 5.0
Professional |
| CPU
|
520MHz Intel PXA270
Processor |
| Memory
|
128 MB SDRAM / 64 MB
Flash ROM |
|
|
|
|
EXTERNAL CHARACTERISTICS
|
|
|
|
Dimension |
8.9”L x 3.9”W x 1.3”H |
| Weight
|
1.06 lbs. |
| Display
|
3.5” QVGA (landscape 240
x 320 pixels)
color touch-screen, TFT-LCD |
| Keypad
|
17 hard keys:
12 numeric keys
Five function keys |
|
|
|
|
MULTIMEDIA FEATURES
|
|
|
| Camera
|
2-megapixel CMOS |
| Audio
Output |
0.8/2 Watt speaker
Microphone Input |
|
|
|
|
COMMUNICATION
|
|
|
| RS232
|
One RJ45 Support:
TX+, TX-, RX+, RX- |
| RS485
|
One RJ45 Support:
TX+, TX-, RX+, RX- |
| Ethernet
|
One RJ45 with PoE (DC 5V
/ 2A) |
| USB
|
V1.1 Host |
| Wireless
|
802.11b/g via SDIO slot |
|
|
|
|
BATTERY & POWER
|
|
|
| Battery
|
3.7V Li-Ion 1200mAh
rechargeable battery pack |
| Backup
Battery |
Embedded battery cell |
| Charging
Time |
12-hours |
| Mini UPS
Operation Time |
1-hour operation
3-days data backup |
| Power
Input |
12V / 2A |
|
|
|
|
CONNECTION & EXPANSION
|
|
|
| SDHC
Slot |
Memory
Wireless Communication |
| Output
Relays |
Two:
2A / 30Vdc
0.5 / 250Vac |
|
Photo-Coupler Inputs |
Two:
3.3V ~ 12V |
| Ethernet
Connection |
|
|
Power-over-Ethernet |
(Optional) |
|
|
|
|
PROXIMITY READER
|
|
|
| EM
|
125 kHz |
| HID
|
125 kHz |
| MiFare
(Optional) |
13.56 MHz
ISO14443A
ISO14443A/B
ISO159693 |
|
|
|
|
FINGERPRINT READER
|
|
|
| Mark
|
1-to-1 |
|
Verification time, |
0.4 sec. per template |
| Capacity
of Fingerprint |
100 templates |
|
|
|
|
SOFTWARE PROGRAMMING
TOOLS |
|
|
| TAS SDK,
API for I/O drivers |
|
| C#,
VB.NET, C++ |
|
|
|
|
|
FIELD ENVIRONMENT
|
|
|
| Mounting
|
In-Wall
On-Wall |
|
Operating Temperature |
32°F to 122°F (0°C to
50°C) |
| Storage
Temperature |
-4°F to 158°F (-20°C to
70°C) |
| Humidity
|
5% to 95% RH
non-condensing |
|
|
|
|
IN THE BOX
|
|
|
| MT380
|
|
| AC
Adapter |
|
| USB
Cable |
|
| RS232
Input Cable |
|
| RS232
Output Cable |
|
| Stylus
|
|
| Terminal
Block |
|
| Test
Proximity Card |
|
| CD with
Manuals / SDK |
|
|
|
|
PATMT380 $1450.00 EACH
|
