PATMR650 $1900.00 EACH
|
SyntegraTech®

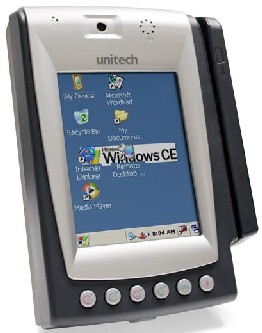

PAT MR650
SyntegraTech's PAT MR650 is an all-inclusive TAS (time management,
access control, and security) system designed to give you full control
over your employee attendance, access protection, Loyalty Programs, and
Work-in-Progress applications. This open platform terminal, powered by
Windows CE 5.0, allows for easy integration with standard management
software and other applications. Data is easily transferred using the CF
type II card slot for wireless communication. An SD card slot is also
available for memory expansion.
Maximize your return on investment. The MR650 reduces payroll-processing
costs, human error in time card auditing, unauthorized overtime and
buddy-punching, and time spent on tracking employees leave, vacation,
and sick day requests.
The
MR650 allows you to choose security features best suited for your
business needs: contact-free proximity reader, fingerprint reader,
barcode reader or magnetic strip reader. Four TTL digital inputs and
three relay output controls provide the versatility to manage access
control. Extra security can be added with a built-in 1.3 mega pixel CMOS
camera with microphone and speaker to provide audio intercom for
continuous surveillance. All data is clearly captured on the 240 by 320
pixel color touch screen.
In order to safeguard your security and your data, the MR650 comes
standard with UPS battery, providing 2 hours of operation without main
power or up to 3 days of data backup.
|
INTERNAL PERFORMANCE
|
 |
|
Operating System |
Windows CE 5.0
Professional |
| CPU
|
520MHz Intel PXA270
Processor |
| Memory
|
128 MB SDRAM / 64 MB
Flash ROM |
|
|
|
|
EXTERNAL CHARACTERISTICS
|
|
|
| Display
|
5.6” QVGA color (240 x
320 pixels) touch-screen |
| Keypad
|
6 hard keys:
Clock In (F1)
Clock Out (F2)
Break In (F3)
Break Out (F4)
Enter (Yes)
Escape (No) |
|
|
|
|
MULTIMEDIA FEATURES
|
|
|
| Camera
|
1.3 megapixel CMOS |
| Audio
Ouput |
0.8W Speaker
Microphone Input |
|
|
|
|
COMMUNICATION
|
|
|
| Batch
|
RS232
USB Host |
| Wireless
|
802.11b/g via CF type II
card slot |
|
|
|
|
BATTERY & POWER
|
|
|
| Battery
|
3.8V Li-Ion 4000mAh
rechargeable battery pack |
| UPS
Operation Time |
2-hours operation
3-days data backup |
| Power
Input |
12 VDC |
|
|
|
|
CONNECTION & EXPANSION
|
|
|
| CF type
II card Slot |
802.11b/g |
| SD Slot
|
Memory |
| Output
Relays |
3 |
| TTL
Digital Inputs |
4 |
| Ethernet
Connection |
|
|
Power-over-Ethernet |
(Optional) |
|
|
|
|
BAR CODE INPUT
|
|
|
|
Symbologies supported |
China Postal Code
Codabar
Code 11
Code 32
Code 39
Code 93
Code 128
Delta Code
Interleaved 2 of 5
ISBT 128
Lable Code IV
Lable Code V
MSI
Standard 2 of 5
Toshiba Code
UPC/EAN |
|
|
|
|
MAGNETIC STRIPE READER
|
|
|
|
|
|
|
PROXIMITY READER
|
|
|
| EM
|
125 kHz |
| HID
|
125 kHz |
| MiFare
|
|
|
|
|
|
FINGERPRINT READER
|
|
|
| Sensor
|
Authentec AFS8500 |
|
Verification time, |
Maximum 2 seconds |
| Equal
Error Rate |
0.1% at medium security |
| Number
of Templates |
4000 |
|
|
|
|
SOFTWARE PROGRAMMING
TOOLS |
|
|
| Embedded
Visual Basic terminal program for T&A
|
|
| Embedded
Visual C++ terminal |
|
|
|
|
|
FIELD ENVIRONMENT
|
|
|
|
Operating Temperature |
32°F to 122°F (0°C to
50°C) |
| Storage
Temperature |
-4°F to 158°F (-20°C to
70°C) |
| Humidity
|
5% to 95% RH
non-condensing |
|
|
|
PATMR650 $1900.00 EACH
|
