PAT PCMDNV8
RUGGED PC MOBILE DEVICE
HOMEHARDWARESOFTWARE

SyntegraTech® provides you with any and all the hardware and software you might need to get started building your own system, or to add to a system you built yourself, someone else built for you, or came to you from SyntegraTech®. You may purchase either this device as part of a DIY Package, that includes the device and the development tools required to make it instantly useful, or you purchase the device by itself. Please click to provide instructions to order.

 You can DO- IT-YOURSELF using Software.



PATPCMDNV9     $850.00 EACH

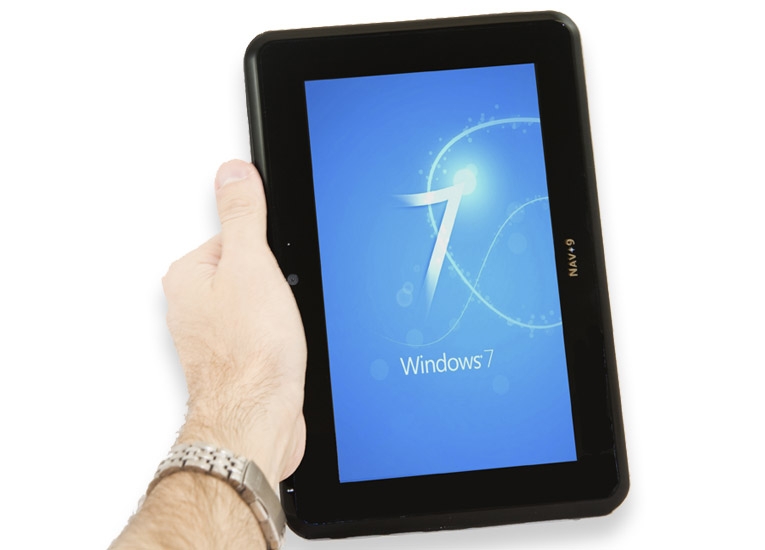

                      SyntegraTech® PAT PC MOBILE DEVICE NV9

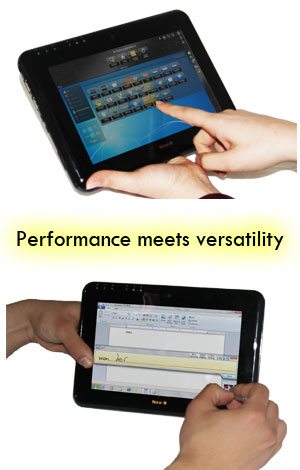

MDNV9 Product Overview



  • 8.9" Multi-Touch Low Pressure Resistive LCD (1024 x 600-pixel resolution) offers precision input with finger or stylus, and supports all multi-touch gestures required for total control of the Windows 7 desktop.
    • 1.66 GHz Intel ATOM N450 processor (512KB L2 cache) offers Netbook-like performance with dual thread technology and low power consumption for extreme portability.
    • 1.8" 16GB Serial ATA Solid State Drive (SSD) is the most rugged HDD available, with transfer rates 2-3x faster than standard (spinning) hard drives. This also results in lower operating temperatures and better graphics processing.
    • 2GB 667MHz DDR2 SDRAM offers twice the power than most other devices in its class, allowing applications to run more smoothly.
    • Built-in Wi-Fi 802.11b/g/n lets you easily connect to the Internet from any mobile hotspot and achieve data rates as fast as 35Mbps.
    • Built-in Bluetooth 2.1 lets you sync up with wireless accessories like headsets, microphones, input devices, speakers, GPS and more.

SPECIFICATIONS



Operating System

 Windows 7 Home Premium, Professional or Ultimate (32-bit, OEM installed)
 nav9_overview_specs
Processor 1.66GHz Intel ATOM N450
Storage 16, 32 or 64GB 1.8" Solid State HDD
Memory 1 or 2GB DDR2 SDRAM
Screen 1024x600 8.9" Resistive Multi-Touch LCD
Wireless

 WiFi 802.11n and Bluetooth 2.1 (included)
Sierra Wireless 3G Broadband (optional)
Expansion Ports
 3x USB 2.0, 1x SDHC Slot, 1x SIM Slot
Webcam 1.3-MegaPixel Front-side
Audio 2x Integrated Speakers, Input/Output Jacks
Battery 3-Core 2200mAh Li-Ion
Power 12V/2A Output, 100-240V Input
Weight 2.0 lbs (907g)
Dimensions 10" W x 6.6" W x 0.8" D
Adapter 19-pin VGA-out and RJ-45 LAN input
Color Black or Silver



IN the BOX
  • PAT PCMDNV9 Slate PC
  • Instruction Manual
  • 18.5V Power Adapter
  • VGA/LAN Port Replicator
  • Pocket Stylus
  • Windows 7 DVD, Instruction Manual and Certificate of Authenticity


PATPCMDNV9     $850 EACH
