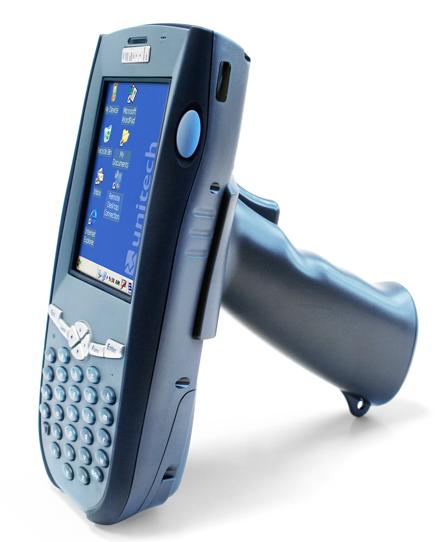

The SyntegraTech PAT HT660 GG is a ruggedly designed, feature-rich, mobile computer ideally suited for manufacturing, retail, transportation and logistics sectors. Reliable enough to capture data in harsh environments, the HT660 is IP54 rated and can withstand 1.5M drops to a concrete floor. It features the Gun Grip handle and Data/Communications Dock.

Weighing in at just 360 grams, the HT660 is equipped with a high-contrast color touch screen, 36 alphanumeric keys, and ergonomic rubber grips for comfort. For scan intensive applications, the 12-hour battery ensures no scanning downtime. Data is also secured with a 72-hour backup battery.

The HT660 comes standard with Microsoft Windows CE 5.0 Professional Operating System, integrated 1D laser scanner, Bluetooth enabled, and an SD card slot. This model includes the optional WiFi (802.11b/g).

Easily integrated with other software and hardware, including mobile printers, the HT660 gives you more flexibility and control over your mobile data collection applications.

INTERNAL PERFORMANCE Operating System Microsoft Windows CE 5.0 Professional Plus CPU 400Mhz Intel PXA270 Processor Memory 64 MB SDRAM / 64 MB Flash ROM

EXTERNAL CHARACTERISTICS Dimensions 7.3”H x 3.4”W x 1.7”D Weight 16 ounces Display 3.5” color QVGA (240 x 320 pixels) Backlit touch-screen, transflective TFT-LCD Heating system Keypad 36-key alphanumeric keypad, Backlit (includes function and navigation keys) Indicator LED (green/red) Audio beeper

COMMUNICATION Batch USB 1.1 RS232 Wireless Bluetooth (Class II) WWAN - PCMICIA slot (GSM / GPRS / EDGE / 2.5G) IrDA SIR 1.2 – 115 baud rate 802.11 b/g Security WEP, WPA, APA2-TKIP, AES Passkey (Bluetooth)

BATTERY & POWER Main Battery 7.4V Li-Ion 1850mAh rechargeable battery pack Battery Life 4.5-hours to 10-hours (configuration-dependant) Extended Battery 3.7V Li-Ion 120mAh Charging Time 3-hours with the charging cable or the docking station Docking Station USB, RS232 cradle Power Input 12V AC adapter

CONNECTION & EXPANSION Slots PCMCIA Type II CF Type I/II Ports RS232 Infrared

FIELD ENVIRONMENT Drop Threshold 4’ Environmental Sealing IP54: Completely sealed against dust and splashes Humidity 5% to 95% (non-condensing) Operating Temperature -4ºF to 122ºF (-20ºC to 50ºC) (configuration-dependant) Storage Temperature -4ºF to 140ºF (-20ºC to 60ºC)

INPUT DEVICES Laser Bar Code Scanner Light source 650 ± 10 nm visible laser diode Scan rate 39 ± 3 scans/second Contrast 25% absolute dark/light reflectance Scan angle 53º nominal Depth of field 5.0 mils - 2 to 5.2" 7.5 mils - 1.7 to 8.0" 10.0 mils - 1.8 to 10" 15.0 mils - 1.9 to 13" 20.0 mils - * to 20" 40.0 mils - * to 25" 55.0 mils - * to 30" * - depending on symbol width Symbologies Codabar Code 11 Code 32 Code 39 full ASCII Code 39 standard Code 93 Code 128 Delta Code EAN-8 EAN-13 EAN 128 Interleaved 2 of 5 MSI Plessey Standard 2 of 5 Toshiba Code UPC-A UPC-E 2D SCANNER / IMAGER Light Sources Red aiming LEDs @ 626nm ± 30nm Green aiming LEDs @ 526nm ± 30nm Red illumination LEDs @ 626nm ± 30nm Scan Angle ± 40° from vertical Focal Point 7" (17.8cm) Ambient Light 535 to 100,000 lux (full sunlight) Linear Symbologies Codabar Codablock F Code 39 Code 93 Code 128 EAN-8 EAN-13 EAN 128 Interleaved 2 of 5 RSS UPC-A UPC-E 2D Symbologies Aztec Aztec Mesas Code 49 Data Matrix EAN MaxiCode Micro PDF417 PDF417 QR Code UCC Composite RSS Postal Symbologies British Post Canadian Post Japanese Post KIX Post Planet Code Postnet RFID Reader (Via PCMCIA Slot) Frequency 13 to 56 MHZ Supporting Tags ISO 15693, Tag it, I-Code, I-Code SLI Reading Distance Terminal level about 1.18” to 2.75”

IN the BOX PA966 Power Supply Battery USB cable Manuals Quick Start Guide
