SyntegraTech®
provides you with any
and all the hardware and software you might need to get started building
your own system, or to add to a system you built yourself, someone else
built for you, or came to you from
SyntegraTech®. You may purchase either this device
as part of a DIY Package, that includes the device and the development
tools required to make it instantly useful, or you purchase the device
by itself.
Please click to provide
instructions to order.
You can DO- IT-YOURSELF using
Software.
PATADK1 $599.00 EACH
|
SyntegraTech®

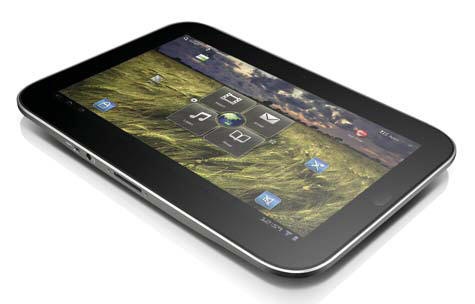

PAT ANDROID MOBILE
DEVICE K1
K1 Product Overview
- NVIDIA® Tegra™ 2
dual-core ARM Cortex-A9 (1.0 GHz) 3G wireless
coming soon.
- Cutting-edge Android 3.1
Honeycomb platform — optimized for tablets
- 10.1" HD (1280x800), 16:10
widescreen display with 10-point multitouch
technology
- Ultraportable: a mere 13.3 mm
thick and 1.65 pounds.
- Up to 64 GB SSD storage
- WiFi, Bluetooth® and optional 3G
keep you connected wherever you go
- Integrated front and rear
webcams
- Micro SD and micro HDMI-out
ports increase your digital output/connection
options
- Lenovo SocialTouch manages all
of your social networking activities in a single,
easy-to-use interface
- Thousands of apps at your
fingertips with access to the Lenovo App Shop
and the Android Market
- Integrated cloud storage to save
and share your files across multiple devices
SPECIFICATIONS
-
Processor
|
-
Dual-core ARM Cortex™-A9
processor (1.0 GHz per core, dual-core), 1MB
L2 cache
|
-
Memory
|
-
1GB std / 1GB
/ max7 / 600MHz LPDDR2, mobile memory,
single-channel capable, no sockets
|
-
Storage
|
32GB
/ eMMC
(embedded Multi Media Card) fl ash memory on
board |
-
Storage
extension
|
-
one
microSD Card slot
|
-
Display
|
-
10.1" (256.5mm) HD (WXGA 1280x800)
TFT color, VA (Vertical Alignment)
technology, VibrantView
(glossy), LED
backlight,
350 nits, 16:10 aspect ratio, 1500:1
contrast ratio, 149 pixels per inch (ppi)
|
|
Graphics |
NVIDIA
ULP (Ultra-low power)
GeForce GPU, integrated in Tegra™
2, uses
system memory, OpenGL ES 2.0, supports 1080p
video out via micro HDMI connector,
HDCP-compliant |
-
Multi-touch
|
-
Supports up to
10 points
|
-
Camera
|
-
Front camera:
2.0-megapixel, fixed focus
Rear camera:
5.0-megapixel with LED fl ash, auto focus,
digital zoom
|
-
Video capture
|
-
720p video
capture (rear camera)
|
-
Audio support
|
-
High Defi nition (HD)
Audio, Wolfson WM8903LGEFK/RV codec /stereo
speakers (1.5 watt x 2) / digital microphone
|
-
Media capable
|
-
Video
formats: MPEG-4, H.263, H.264, VC-1, WMV9,
Xvid
Audio formats: MP3, AAC, AAC+, eAAC+, WAV,
PCM, WMA, WMA2
|
-
Keyboard
|
-
Virtual keyboard
via Android, portrait and landscape support
|
-
Control buttons
|
-
OFN (Optical
Finger Navigation), volume up, volume down,
and power buttons, G-sensor lock (rotation
on/off)
|
-
Light sensor
|
-
Ambient Light
Sensor
|
-
G-sensor
|
-
Accelerometer
(G) sensor, supports 3-axis accelerometer
|
-
Gyroscope
|
-
3-axis gyroscope
|
-
eCompass
|
-
Digital compass
|
-
Platform
|
-
NVIDIA
Tegra 2
|
-
Ports
|
-
Docking/charger
port, micro HDMI, stereo microphone /
headphone combo jack (3.5 mm)
|
-
WLAN
|
-
11b/g/n
wireless4, Azurewave AW-NH611 SiP module,
WIFI+Bluetooth Combo Chip
|
-
GPS
|
-
GPS, Broadcom
BCM4751, A-GPS (Assisted GPS) support on
WWAN models
|
-
Bluetooth
|
-
Bluetooth 2.1+EDR wireless, integrated in
Azurewave AW-NH611 combo chip
|
-
Dimensions
|
-
(WxDxH):
10.4" x 7.4" x 0.52"; 264mm x 189mm
x 13.3mm
|
-
Weight
|
-
WLAN model:
starting at 1.63 lb (740 g); WWAN models:
1.70 lb (770 g)
|
-
Case material
|
-
Top:
Glass cover;
Bottom: PC/ABS +
Aluminum
|
-
Battery - type
|
-
Lithium Ion,
2-cell (7400mAh)
|
-
Battery - life
|
-
up to
approximately 9 hr (web browsing via WiFi)
|
|
|
|
IN the BOX
|
 |
| PAT ADK1 |
| Power
Supply |
|
COMMUINCATIONS CABLE |
| MICRO SD
SLOT OPENING DEVICE |
|
|
|
|
PAT ADK1
SYNTEGRATECH®
is the registered trademark of
SyntegraTech® Inc., all rights reserved.
